Application field:

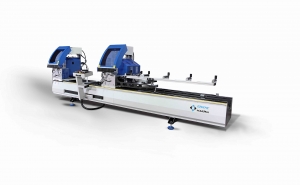

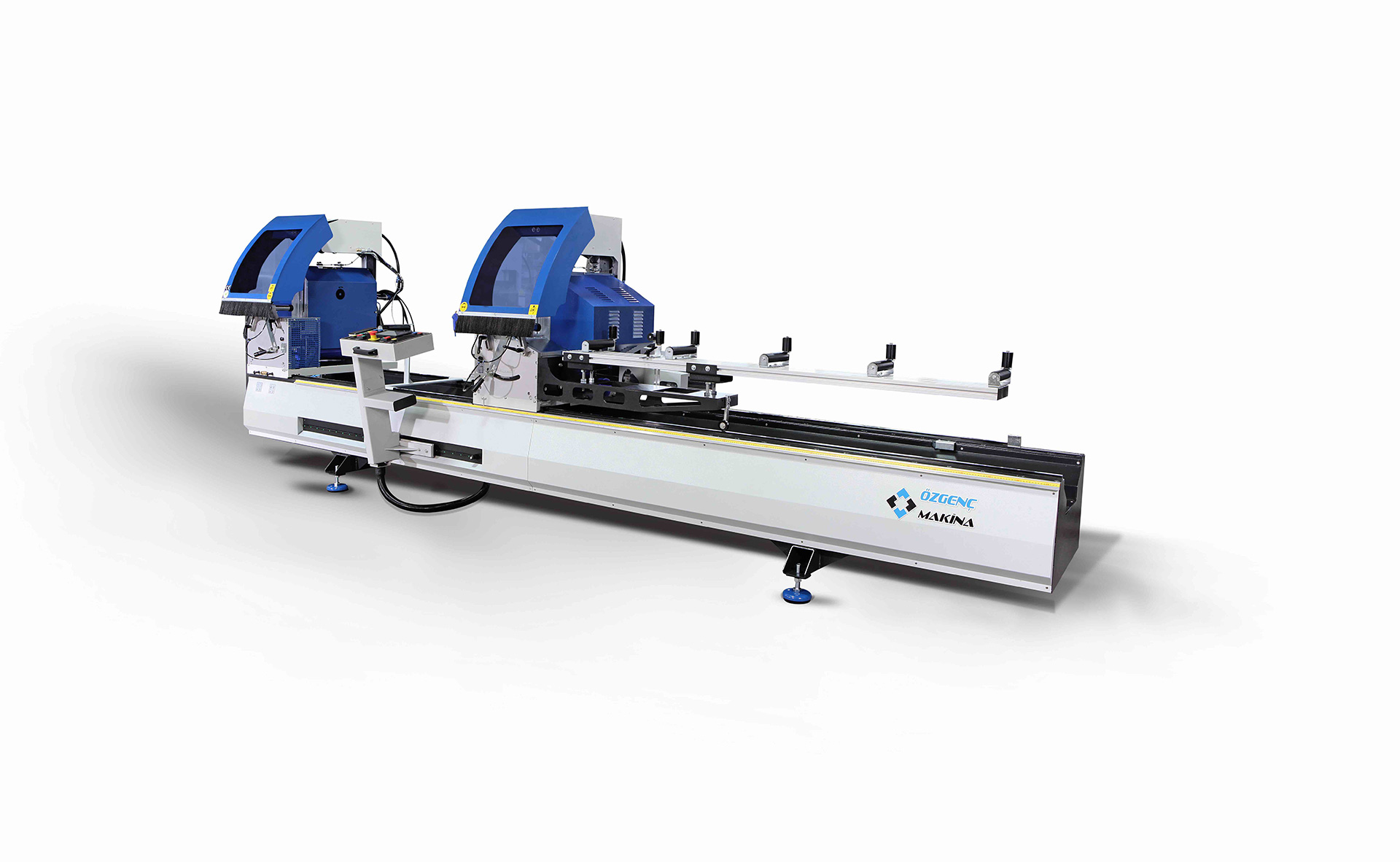

Designed for PVC and aluminium profiles cutting
General properties:

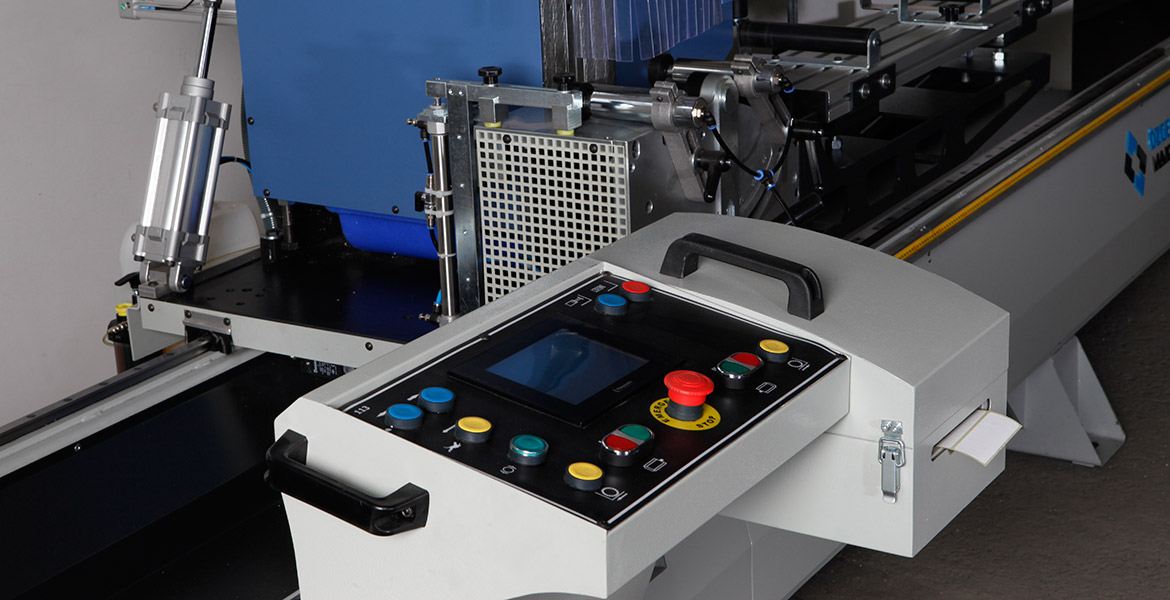

- Cutting length size and angle degree are entered from LCD-display on control panel
- Automatic head position for 45° and 90 °degrees, easy adjustment for intermediate angles
- Memory size of 2299 steps including quantity, length and angles of cutting
- Possibility of manual length size adjustment
- Magnetic rule length control system
- PLC control system
- Multilanguage support
- Repetitive cut program, angle cut – variable and fixed length – fixed angle
- Extra length cut program (over 4 mt.)
- Diameter of a diamond saw blade is 500 mm
- Output of disk is 170 mm that allows to make double profile cutting (85 mm x 2)
- Horizontal pneumatic clamping kit
- Adjustable cutting speed
- Single head operation possibility
- Industrial dust exhaust
- Conveyor for the movable head
- Intermediate profile support for long size cutting
- Particular care has been taken over the safety measures, both mechanical and electrical
- Power supply protects system from voltage overload
- Servo motor

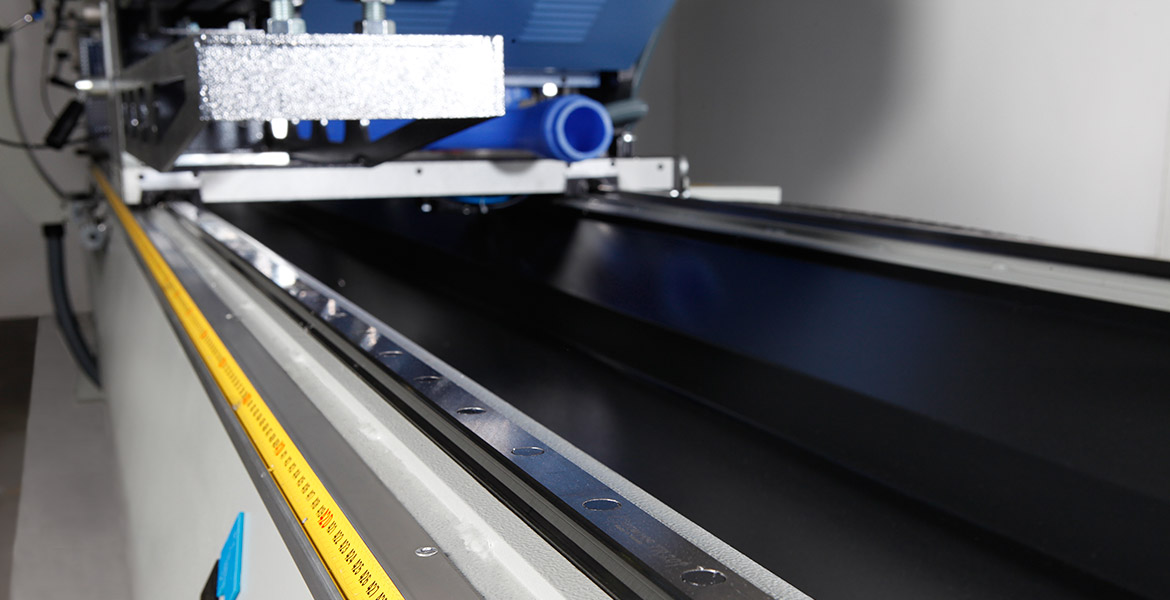

- Linear rails head movement
Options:
- Cooling system for aluminium profile cutting & Vertical clamping
- CO – Cutting Optimisation: Data transfer module from PC via ethernet and label printer
